Flat Metal Roof Leaking Issues Explained

Recognising and Addressing Common Flat Roof Issues for Homes on the Central Coast

Although flat roofs may not dominate the roofing market in Australia, their adoption is increasingly favoured by both residential and commercial properties. These roofing solutions are frequently employed on patios, carports, walkways, and any area that necessitates low-pitch roofing. In instances of minimal incline, flat roofs can also be referred to as “skillion roofs.”

Flat roofs present a plethora of benefits; however, they also come with specific challenges that homeowners need to be aware of. Recognising the common issues associated with flat roofing systems and putting in place preventative measures is crucial, particularly in the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing concerns.

What Are the Driving Forces Behind the Increasing Popularity of Flat Roofs Among Homeowners?

Flat roofs are gaining traction in both residential and commercial constructions for a variety of compelling reasons:

• They allow for quicker and simpler installation, facilitating faster project completion
• They offer improved maintenance access, making routine inspections and repairs more straightforward
• They provide an excellent foundation for solar panel installations, thereby promoting energy efficiency

The most pressing challenge associated with flat roofs is the management of water drainage. Water is the primary threat to your roofing system. When planning a new roof installation or upgrading an existing roof, it is essential to consider various factors, particularly rainfall, which can vary significantly across different regions of Australia.

What Are the Main Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that enable rainwater to flow off quickly into gutters, flat roofs have a limited slope. This design can result in water pooling that persists for extended periods. If water is not efficiently directed away from the roof, it may lead to:

• Surface staining and deterioration of roofing materials
• Progressive structural weakening of roofing components over time
• Accumulation of mould and mildew, which poses health risks
• Leaks that can infiltrate the interior spaces of the building

The key to resolving these issues lies in effective roof plumbing and thoughtful design that takes into account the unique challenges posed by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Performance

Before commencing installation, a professional roofing contractor will evaluate several key factors affecting drainage efficiency:

• Local rainfall intensity and dominant weather patterns
• Total roof area and precise measurements
• Gutter configurations and effective drainage outlets
• Specifications for downpipe dimensions
• Overflow prevention strategies to mitigate excess water
• Considerations regarding roof pitch to optimise drainage

Most roofing manufacturers recommend maintaining a minimum slope of 5° for low-pitch roofs. Roofs with less slope than this can jeopardise waterproofing efforts and may even void product warranties, leading to potentially costly repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, are not appropriate for very low-pitch applications. For flat roofs, specific roofing profiles designed for efficient water shedding are highly recommended to ensure optimal long-term performance.

Identifying the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two of the most recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is applicable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure the sheets. This design effectively prevents water ingress through screw penetrations, making it a fantastic option for low-pitch installations.

Selecting the correct roofing profile based on your roof pitch and local rainfall conditions is vital for ensuring the durability and reliability of your roofing system.

How to Effectively Manage Box Gutters and Drainage on Flat Roofs

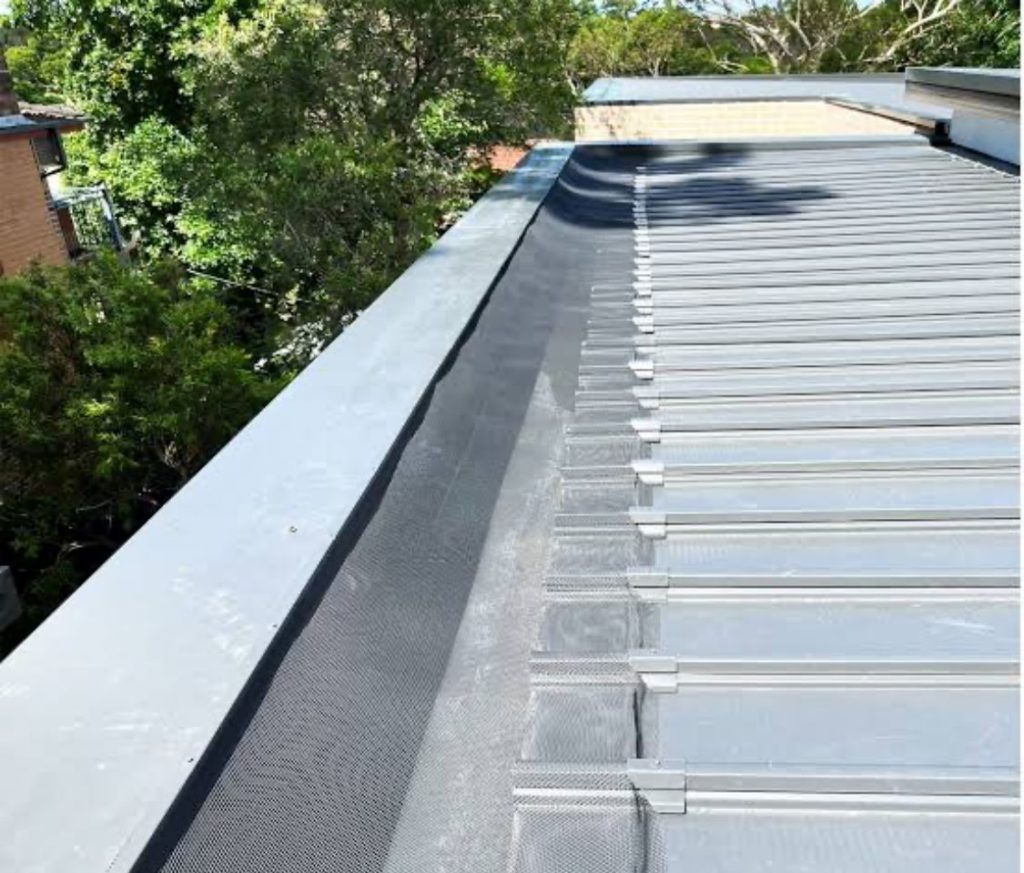

On flat roofs, box gutters are commonly utilised to connect roof panels to drainage outlets. Because box gutters are positioned below the roof plane, they require meticulous detailing and installation to prevent blockages and water back-up issues.

Common challenges associated with box gutters include:

• Build-up of debris from surrounding trees and foliage
• Inadequate fall or slope that obstructs water flow
• Overflowing back into the roof structure, resulting in leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Key Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately manage the water flow requirements of flat roofs. It is often necessary to install guttering specifically designed to handle larger volumes of water. Next, we will explore various drainage and overflow solutions that can be integrated into your flat metal roof design.

• Facilitate faster water removal during heavy rainfall
• Effectively sweep away debris with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

Our top recommendation for gutters is self-cleaning designs, perfect for flat metal roofs while also offering an aesthetically pleasing look!

We advocate for a half-round gutter due to its enhanced water-carrying capacity, which allows for quicker drainage. This design efficiently sweeps away silt and sludge accumulations with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be appropriately sized according to local rainfall patterns and connected to suitably sized downpipes (for example, 100mm × 75mm) capable of managing substantial water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Flashings Are Essential for Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is crucial, as water can accumulate around these joints if they are not adequately sealed.

To successfully prevent water ingress:

• Flashings must be carefully shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra attention is required at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes added precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Consistent Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, especially those linked to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Clearing debris from gutters and box gutters to ensure unobstructed drainage
• Examining downpipes for any signs of potential blockages
• Inspecting roof surfaces for small cracks or areas prone to water pooling
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting regular maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the lifespan of your roofing system.

Discover the Advantages of Expertly Installed Flat Roofs

When designed and installed by proficient metal roofing professionals, flat roofs provide:

• A modern, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, enhancing the overall functionality and appearance of the building.

How to Ensure You Achieve the Right Installation of Flat Roofs on the Central Coast

A well-designed and expertly installed flat metal roof can provide both functionality and lasting durability in the coastal environment. Whether you are commencing a new construction project, extending a patio, or adding a carport, selecting the appropriate roofing system and drainage design is paramount for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the perfect opportunity to address any roofing issues and prevent larger problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Face More Challenges Compared to Pitched Roofs?

Flat roofs can indeed encounter more drainage challenges if they are not designed correctly. Without an adequate slope, water may pool or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be equally resilient as pitched roofs.

What Is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can operate effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees requires careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is It Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and improves safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Utilised on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often found between roof sections or along parapet walls. They are commonly used on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally necessitate higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in minimising maintenance needs.

What Is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
